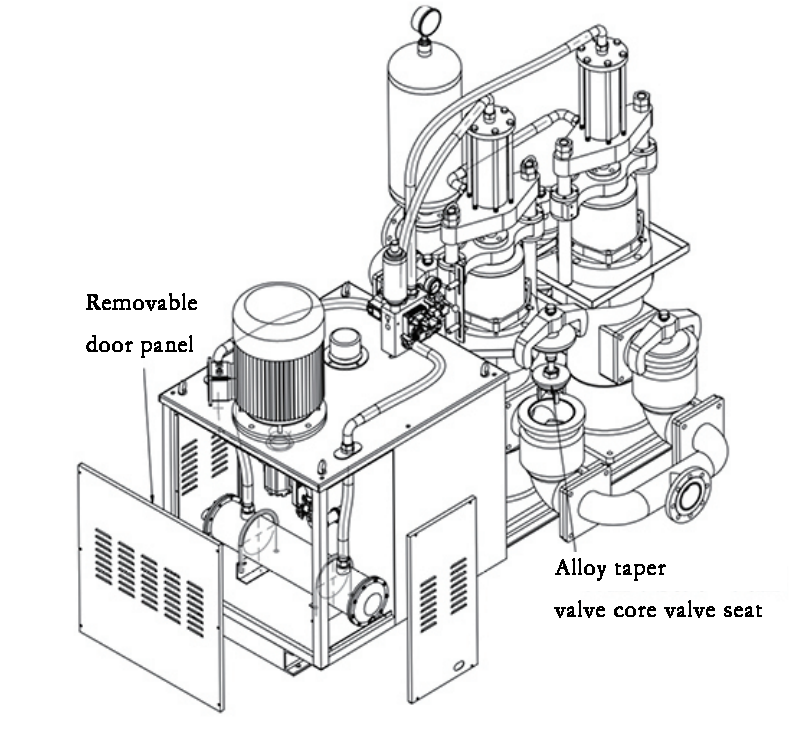

LYB series ceramic piston pump is hydraulic driven, Double-cyinder double-acting volume pump (vacuum pump).
This pump is driven bythe motor, through the gear coupling to start up gear pump (refered to the ol pump), the ol pump sucks low pressure oil from the tank and thendischarge high pressure oil, through the vaive, the high presure ol is altenating into the two hydraulic cylinders, driving hydraulic cylinder pistonsthen the pistons drive two ceramic pistons (ceramic plunger to reciprocate alterately, the slury wll be sucked and discharged through the pumpinlet and outlet.
Piston Pump Usage
1. Matching with spraying silos for powder (lncluding ceramic, chemical and all the industries using spraygun);
2. Pumping the slurry to fiter presses (including washed kaolin, wastewater treatment, food and all the other solid liquid separation industries);3. Long transporting distance (200-1500m) or one pump aside several pools for slurry transport.
Plunger pump advantages
1. Ant-abrasion: ceramic piston is alumina ceramic firing, after grinding from fine, hardness HLC8.5 above, the surface roughness of 0.4um.Plungers will not break the slurry character, suitable for transporting the slurry containing sand and solid particles
2. Strong Suction: Piston and vacuum pump way, lift 0-6m (but the slurry character will also effect the lift).
3. Adjustable constant sfurry pressure and automaticaly varable oil fow: The pump working pressure could be adjustable within the range 0-20 kgThe adjusted pressure wil not be changed due to the change of the pump discharge ftow, it wil be maintained, wil not be changed even if its slurydischarge is shut off during pump running. (The flow change can not exceed the maximum flow, but the flow can be zero).
4.High Pressure and High Efficiency: the max pressure of ordinary model is 20 kg. At the same pressure ( > 5 kg) and same flow, this piston pumpmotor power is smaller than 1 to 2 model compared to other types of pumps.
5. Easy Operation: tighten or relax the pressure regulating vaive to adiust the pressure, then lock it tightly, no need to adiust in future.
6. Low Usage Cost: the easy wearing parts are valve plate and water sealing. Normaly their change time is 3-6months, for Municipal sludge, theirchange be longer as 6-12 months: change be longer as 6-12 months;
7. Usage Life: More than 15 years.
For more information please send us a query
